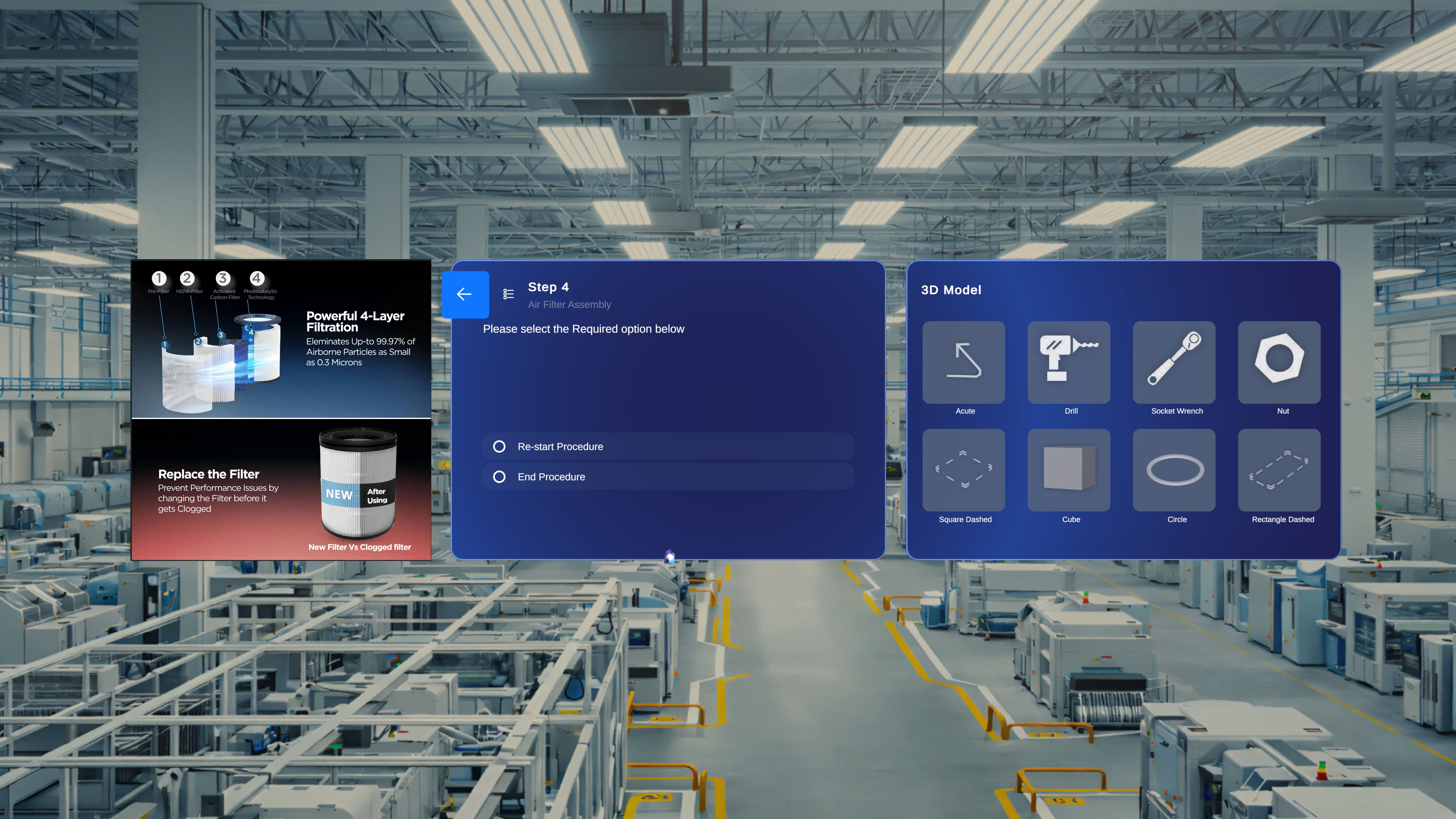

Default view of a Choice Step in Author mode presenting selectable option labels

​
Overview

A Choice Step presents one or more selectable options that determine the next step in the procedure. Each option is configured in the web editor with:
  • A choice label
  • A defined destination step
You must select one of the available options to continue. You cannot proceed forward without making a selection. This behavior is identical in Author Mode and Operator Mode.

​
When This Appears

A Choice Step appears when the procedure includes conditional branching. It is used when:
  • The workflow depends on a decision
  • Different outcomes require different next steps
  • The procedure must branch into separate paths
Choice Steps are commonly used in troubleshooting flows, conditional inspections, or multi-path workflows.

​
Screen Elements

Choice Step panel with one of the option labels in focus
The Choice Step panel includes:
  • Task title
  • Step numbering
  • Instruction text (for example, Please select the Required option below)
  • One or more selectable options (maximum supported: 3 options)
  • A back arrow in the top-left corner
There is no forward navigation button available on this step.

​
Media Panel Behavior

Media panel displaying an attached video for the current step with a play button
The Media Panel behaves the same as in any other step:
  • If an image is attached to the step, it is displayed.
  • If a video is attached:
    • The video auto-plays when the step is entered.
    • The video plays in a loop.
    • The user can manually play or pause.
    • The user can mute or unmute.
If no media is attached, the Media Panel does not appear. This behavior is consistent in both Author and Operator modes.

​
3D Model Panel Behavior

3D Model panel showing a grid of selectable model tiles attached to the current step

​
In Author Mode

  • The 3D Model Panel is visible.
  • Any GLB models attached to the Choice Step are shown.
  • Authors can spawn models into physical space.
  • Multiple models (same or different) can be placed.
  • Interactable and ghost settings behave according to their configuration.

​
In Operator Mode

  • The 3D Model Panel is not displayed.
  • If 3D models were placed during authoring:
    • They appear in the scene at their authored positions.
    • Interaction depends on configuration:
      • If Interactable is disabled, the operator cannot move or manipulate the model.
      • If Ghost is disabled, no original-position shadow is shown.
      • If both are disabled, the operator can only view the model.
This behavior is identical to other step types.

​
Select a Choice

A choice step option in focus, with a loading indicator filling around the option label. When the indicator completes, the option is automatically activated.

​
Step-by-Step Instructions

  1. Review the available options.
  2. Focus one of the options with the ray or head-gaze cursor — a loading indicator starts filling around the focused option.
  3. Hold your focus on the option until the indicator completes. The option is then automatically activated, and the procedure advances to the destination step configured for that choice.
You can also air-tap the option to activate it immediately without waiting for the indicator, or say the option label exactly as it appears (for example, “Start with the alternator”) to activate it by voice. See Voice Commands in Author Mode for the choice-label voice command.

​
What Happens Next

  • The system immediately navigates to the destination step configured for that choice.
  • The procedure continues along the selected branch.
  • Navigation follows the defined structure of that branch until another Choice Step or Completion Step is reached.
  • You cannot move forward without selecting an option.
  • The forward navigation control is not available on a Choice Step.
  • You can use the back arrow (if available) to return to the previous step.
  • Back navigation returns you to the previous step within the active branch.

​
Configuration Note

All choice labels and their destination steps are configured in the web editor during procedure creation. Authors must ensure:
  • Each option has a valid destination.
  • Branches either rejoin the main flow or end with an appropriate Completion Step.
In branching procedures, manually added Completion Steps are often required to properly terminate each path.
