Step List Panel

​
Overview

In both Author Mode and Operator Mode, a List Icon appears in the Step Main Panel.

​
Location

  • Top-left of the Step Panel
  • Positioned before the Back button
  • Represented by a list-style icon
Selecting this icon opens the Step List Panel, which provides full navigation across the entire procedure.

​
What Happens When Selected

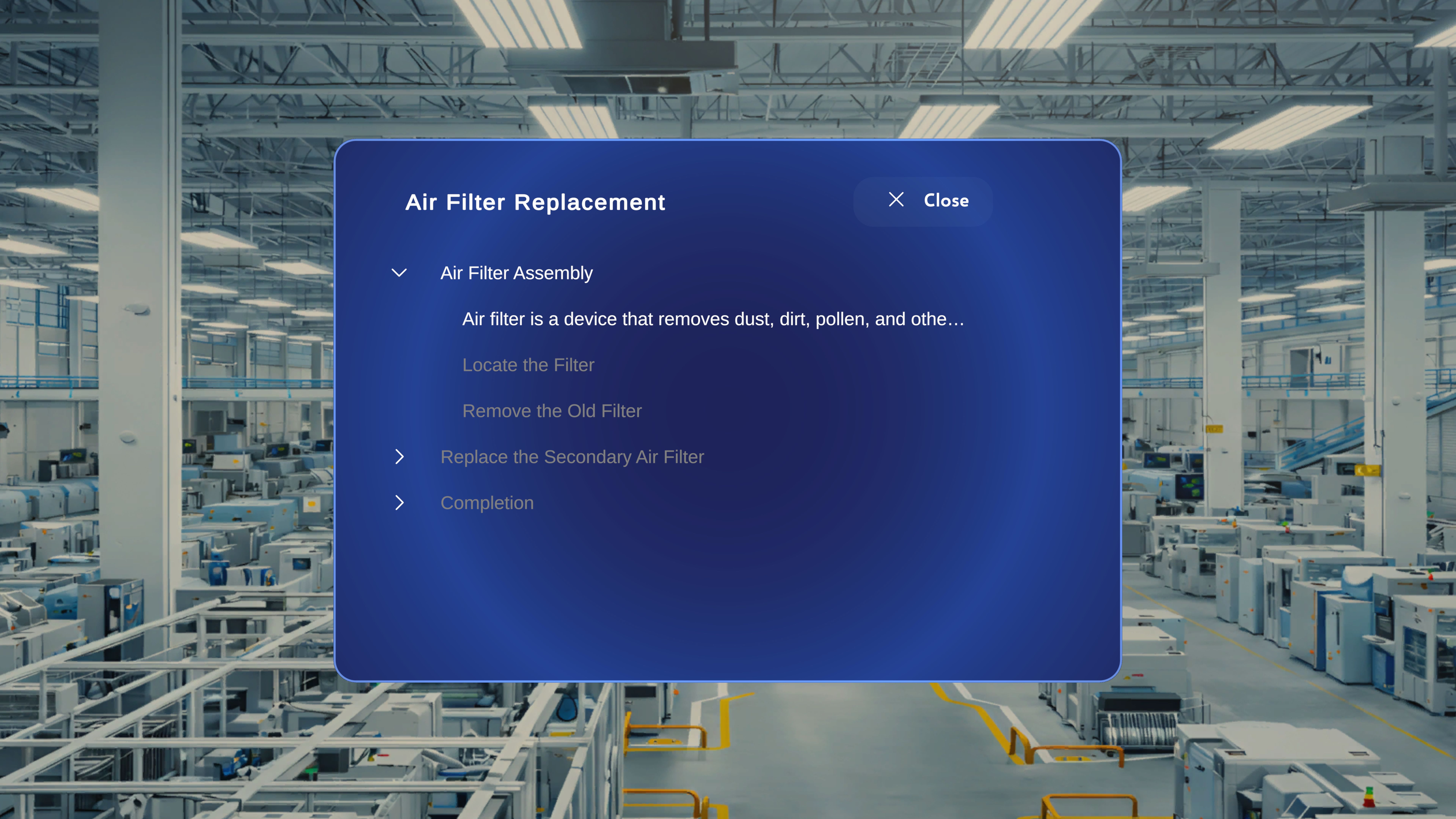

Selecting the List Icon opens a panel that displays:
  • The Procedure Name (for example, Air Filter Replacement)
  • All Tasks
  • All Steps under each Task
  • All Completion Steps, including:
    • Completion steps manually added within tasks
    • The system-generated default Completion Task and Step
This panel functions as a complete procedure navigator.
From the Step List Panel, the user can:
  • Jump to any Task
  • Jump to any Step within any Task
  • Jump to any manually added Completion Step
  • Jump to the default system-generated Completion Task and Step
  • Skip forward without sequential navigation
  • Move backward without using the Back button
This navigation can be performed from anywhere within the active procedure. There is no requirement to follow the Next/Back sequence when using the Step List Panel.

​
Behavior After Jumping to a Step

After selecting a step from the list:
  • The selected step becomes active immediately.
  • The Step Panel updates.
  • Media and 3D content load according to that step’s configuration.
  • All step-level behaviors remain consistent with normal navigation.
The system treats this as if the user had reached that step sequentially.

​
Behavior in Operator Mode

When jumping to a step in Operator Mode:
  • The Step Panel loads.
  • The Media Panel appears only if media is attached.
  • The 3D Model Panel is not displayed.
  • Any 3D models placed during authoring appear at their saved positions.
  • Interactable behavior follows configuration:
    • If disabled, models cannot be manipulated.
    • If Ghost is disabled, no original-position shadow is shown.
  • The Thread/Gem anchor appears if configured for that step.
Operators cannot spawn or edit models.

​
Behavior When Jumping to a Choice Step

If the selected step is a Choice Step:
  • The Choice Step loads normally.
  • No forward navigation button is available.
  • The user must select a choice option to proceed.
  • Branching behavior remains identical to sequential navigation.
The only difference is that the user has skipped directly to that step instead of reaching it through Next navigation.

​
Step-Level State

Each step maintains its own saved configuration, including:
  • Media attachments
  • 3D models placed
  • Interactable settings
  • Animation settings
  • Thread/Gem anchor placement
Jumping to a step loads that step exactly as authored.

​
Close Behavior

The Step List Panel includes a Close (X) button. Selecting Close returns the user to the currently active step without changing the procedure state.
